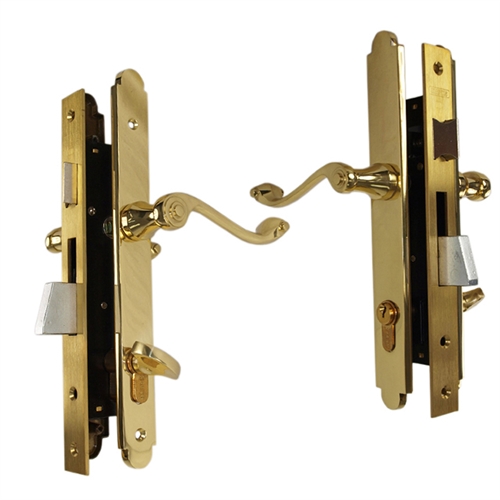

Marks Thinline Slim Line, 2750B/3, Brass, Right Hand, Mortise Entry Lever Plate Trim Set Lockset Single Cylinder Lock Set (For Patio Door)

Marks Thinline Slim Line, 2750B/3, Brass, Right Hand, Mortise Entry Lever Lockset Single Cylinder Lock Set (For Patio Door)



Alternative Views:


Our Price: $149.95

Quantity in Stock:11


Availability: Usually Ships in 1 to 2 Business Days
Product Code: 2750B3RH


Additional Keys:


Handle & Key Position:


While Standing OUTSIDE:


While OUTSIDE Door Opens:


Keying:


Master Keying:


Qty:
Description

Marks Thinline Slim Line, 2750B/3, Polished Brass, Right Hand, Mortise Entry Lever Plate Trim Set Lockset Single Cylinder Lock Set (For Patio Door). 1" Backset, Deadbolt:1", front: Lock Face Plate is 1" x 9-7/16". Single Cylinder on outside and thumb turn on inside. Commercial Mortise Locksets, For storm doors. Mounting screw holes spaced at 8-1/4 inches. Backset 1 inch. Thru-bolted solid brass lever plate trim set assemblies, Spring loaded captivated self adjusting spindles with screwless levers.
Features
  • Reversible Mortise Lock
  • Finish: Brass
  • Backset: 1"
  • Faceplate: 9-7/16" x 1"
  • Deadbolt: 1"
  • Latch: 1/2"
  • Handing: Right Hand
  • For Patio Doors
  • single cylinder with 2 keys
  • Thinline series 2750 for 1" Doors
  • Faceplate Screws: 8-1/4 inches
  • Escutcheon Plate: 1 x 9-3/4
  • Escutcheon Plate Screws: 7-7/16 inches
  • Handle to Cylinder Spacing: 3-5/16 Inches
  • Center of spring latch, to center of Deadbolt 3-1/2 inches
  • Thru-bolted solid brass lever plate trim set assemblies
  • Spring loaded captivated self adjusting spindles with screwless levers
