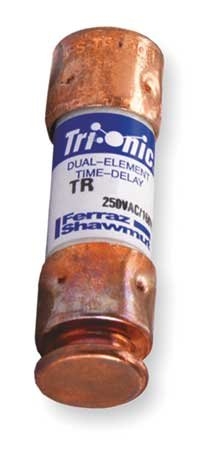

Ferraz Shawmut, TR30R, (Like Bussmann FRN-R) Fuse, TR-R, 250VAC/160VDC, 30A, Time Delay
Ferraz Shawmut, TR30R, (Bussmann FRN-R Like) Fuse, TR-R, 250VAC/160VDC, 30A, Time Delay



List Price: $6.49
Our Price: $3.99
Savings: $2.50

Quantity in Stock:33


Availability: Usually Ships in 1 to 2 Business Days
Product Code: TR30R
Qty:

Description

Ferraz Shawmut, TR30R, (Like Bussmann FRN-R) Fuse, TR-R, 250VAC/160VDC, 30A, Time Delay, TR-R (UL Class RK5) and A2D-R (UL Class RK1) 250V FusesBussmann equivalents: TR-R to FRN-R; A2D-R to LPN-RKUL Listed, CSA Certified. Time-delay, with rejection Polyester bodies; 70A and higher are blade style, all others cylindrical Rated 250VAC/DC except TR-R 3 to 30A and 450 to 600A are 160VDC TR-R (Class RK5): 200kA IR AC, 20kA IR DC A2D-R (Class RK1): 200kA IR AC, 100kA IR DC, Fuse, Low Voltage Industrial, Class RK5, Series TR-R, Voltage Rating 250VAC/160VDC, Fuse Amps 30, Time Delay, No, Dual Element, Polyester Body Material, Cylindrical (Rejection) Body Style, Interrupt Rating 200kA at 250VAC, 20kA at 160VDC, Length 2", Diameter 9/16", Functionally Equal To Bussmann FRN-R, Standards UL, CSA, Package Quantity 1.
Features
  • Item Fuse
  • Type Low Voltage
  • Class RK5
  • Series TR-R
  • Voltage Rating 250VAC/160VDC
  • Fuse Amps 30
  • Speed Time Delay
  • Indicating No
  • Element Dual
  • Body Material Polyester
  • Body Style Cylindrical (Rejection)
  • Interrupt Rating 200kA at 250VAC, 20kA at 160VDC
  • Length 2"
  • Diameter 9/16"
  • Functionally Equal To Bussmann FRN-R
  • Fuse Holder Code H
  • Standards UL, CSA
