Door Closer Rixson Assa Abloy Model 370 Center Hung Pivot Set Choice of Finish

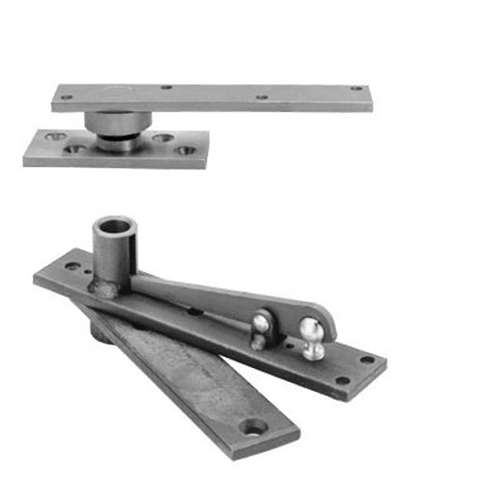

Door Closer Rixson Assa Abloy Model 370 Center Hung Pivot Set

Alternative Views:
Our Price: $373.02


Free Shipping
Availability: Usually Ships in 1 to 2 Business Days
Product Code: STD-RN370


Finish:

Qty:
Description

RIXSON Specialty Door Controls offers customized solutions for challenging design requirements. It is the leading North American provider of concealed closers, pivots and mechanical/electromechanical door holders.

Application * Exterior or Interior Doors * Weight to 500 lbs. * Door Sizes up to 3'8"x 8'6"* (1118 x 2591mm) * Non-handed Center hung pivots are door hanging means only. To close doors, see floor closer sections. *For doors taller than 8'6" use top pivot 345 in lieu of 340

Bottom pivot mounts directly to floor. Pivot set features sealed bearings for protection against weather and debris. All center hung pivot sets are double acting unless stopped by some means on the door frame.

Specifications:
* Standard top pivot 340 included
* Bottom pivot mounts directly to floor
* Pivot point centered in thickness of door
* Door must have radius on pivot edge
* Pivot set features sealed bearings for protection against weather and debris
* Not allowed for use on labeled doors and frames
* Furnished with wood and machine screws
* Available with extended spindles in 1/2" (13mm) increments up to 2" (51mm) longer than standard
* This Item can be ordered in the following Finishes:
* Satin Chrome 626
* Bright Chrome 625
* Bright Brass 605
