Door Closer Rixson Assa Abloy Model 30NHO 626 Heavy Duty NON HOLD Open Floor Closer Satin Chrome Finish

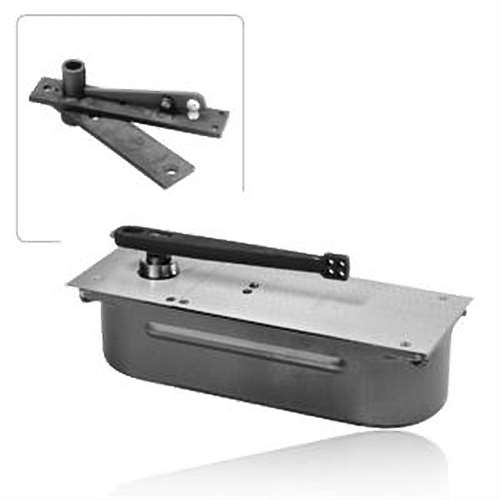

Door Closer Rixson Assa Abloy Model 30NHO 626 Heavy Duty NON HOLD Open Floor Closer

Our Price: $1,548.06


Free Shipping
Availability: Usually Ships in 1 to 2 Business Days
Product Code: STD-RN30NHO
Qty:

Description

RIXSON Specialty Door Controls offers customized solutions for challenging design requirements. It is the leading North American provider of concealed closers, pivots and mechanical/electromechanical door holders.

Application * Double Acting Non-handed * Interior or Exterior Doors * Weight to 200 lbs. * Sizes up to 4'0" x 8'6"* *Primary means of egress should not use double-acting closers *For doors taller than 8'6" use top pivot #345 in lieu of 340

Steel Cement Case. Horizontal adjustment- adjusting screw on arm makes it possible to align door horizontally toward or away from frame and lock in desired position. Vertical adjustment- door may be raised or lowered through the use of shims adjustable spring tension and closing speed.

Specifications:
* Centering arm with adjustment screws in faces of door (critical for double acting doors)
* Adjustable closing speed valves for each direction of door swing
* Mechanism returns door to center
* Available non-hold open (N) or automatic hold open (A) at 90* (requires 93* swing) or 100* (requires 103* swing)
* Maximum door opening 103
* Auxiliary door stop required, overhead or floor type
* Standard top pivot: #340 included
* This Item can be ordered in the following Finishes:
* Satin Chrome 626
