Door Closer Rixson Assa Abloy Model 128-3/4" Center Hung Double Acting Choice of Finish

Door Closer Center Hung Double Acting Model Rixson Assa Abloy 128-3/4"

Alternative Views:
Our Price: $251.83


Free Shipping
Availability: Usually Ships in 1 to 2 Business Days
Product Code: STD-RN128-34


Finish:

Qty:
Description

RIXSON Specialty Door Controls offers customized solutions for challenging design requirements. It is the leading North American provider of concealed closers, pivots and mechanical/electromechanical door holders.

Application: * Interior Doors * Weight to 250 lbs. * Door Sizes up to 3'6"x 8'6" (1067 x 2591mm) * Non-handed * Light-Duty/Light Weight Pivot Set .

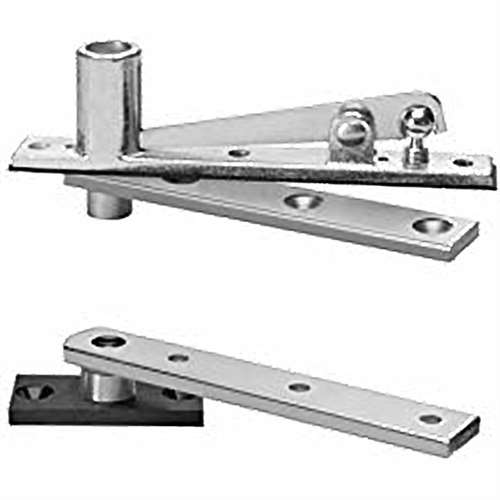

Center hung Double acting x 320. Standard top pivot 340 included. Pivot set if fully concealed. Bottom pivot is mortised into floor. Heavy Duty bearings. All center hung pivot sets are double acting unless stopped by some means on the door frame.

Specifications:
Available for fire door assemblies (ferrous material) specify F180
* Standard top pivot 340 included
* Bottom pivot mounts directly to floor
* Weight of door borne by floor
* Pivot point centered in thickness of door
* Door must have radius on pivot edge
* Not allowed for use on labeled doors and frames
* Pivot point remains constant at 1-1/4 from the edge of the door
* Furnished with wood and machine screws
* Available with extended spindles in 1/2" (13mm) increments up to 2" (51mm) longer than standard
* This Item can be ordered in the following Finishes:
* Bright Brass 605
* Bright Chrome 625
* Satin Chrome 626
