Bell & Gossett Hoffman Specialty #43 1/4" Male Pipe Straight Steam Radiator Air Valve Convector

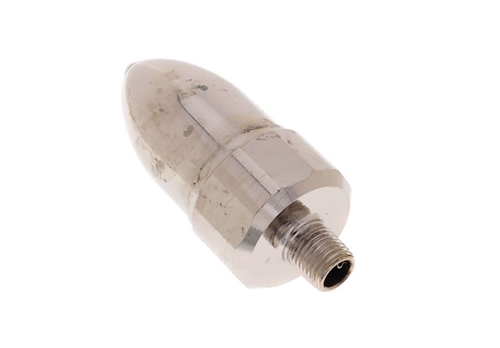

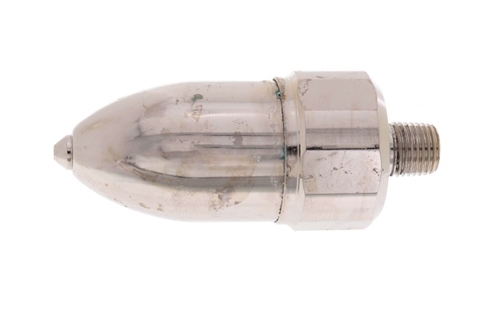

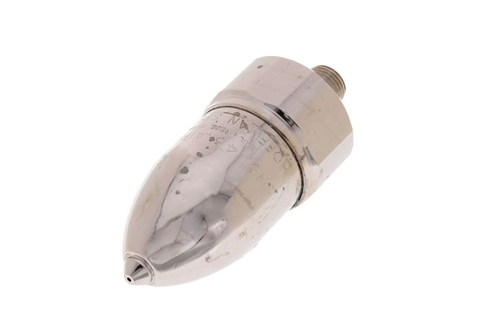

Bell & Gossett Hoffman Specialty #43 1/4" Male Pipe Straight Steam Radiator Air Valve Convector

Alternative Views:
Our Price: $94.99


Free Shipping
Availability: Usually Ships in 1 to 2 Business Days
Product Code: HFMN-43
Qty:

Description Technical Specs

Bell & Gossett Hoffman Specialty #43 1/4" Male Pipe Straight Steam Radiator Air Valve Convector, designed for an ordinary one-pipe system that doesn't require proportional venting, Single non-adjustable port, 1/4" NPT straight connection. Maximum operating pressure 6 psig (0.4 bar)(Drop away pressure - maximum pressure against which the vent can open). Maximum pressure 10 psig (0.7 bar).
Features
  • Air Valve (non-vacuum)
  • Single non-adjustable port
  • For small steam systems
  • Telescopic siphon tube with angle cut assures drainage
  • 1/4" NPT straight shank
  • Maximum operating pressure 6 psig (0.4 bar)(Drop away pressure - maximum pressure against which the vent can open).
  • Maximum pressure 10 psig (0.7 bar)
